Description
SQ-40/SQ-60 is a organosilicon quaternary ammonium compounds and its chemical
structure as follows:
Chemical Name: [3-(trimethoxysilyl) propyldimethyloctadecyl] ammonium chloride
Molecular formulae：C26H58ClNO3Si
CAS：
27668-52-6
Properties
Appearance : Pale yellow liquid.
Chemical nature : Silane quaternary ammonium compound.
Active ingredient : 40%, 60%(( according to customer’s requirements)).
Solvents: Methanol, Isopropyl alcohol( or according to customer’s
requirements). Solubility : Miscible in all proportions with water.
Thermal stability : Stable up to 125oC.
Features:
0 It is an anti-microbial agent imparts durable, broad spectrum, bio-static activity to the
surface of wide variety of substrates, such as fibers, leathers, and other solid surfaces.
0 It is non-leaching & non-migrating & is not consumed by microorganisms.
0 It is effective against gram positive and gram-negative bacteria, fungi, algae & yeasts.
Anti-microbial action is exhibited on contact.
0 Prevents deterioration & discoloration caused by bacteria, fungi, algae & yeasts.
0 Prolongs the life of an article by inhibiting the growth of bacteria and mildew.
0 Provides hygienic freshness & resists odors through chemical protection
0 Retains the freshness of an article by inhibiting or resisting the growth of odor causing
bacterial and mildew (fungus).
Uses:
SQ-40/SQ-60 antimicrobial can be used to impart durable, broad-spectrum anti-microbial
protection to substrates for the following application.
0
Air filters for furnaces, air conditioners, air purification devices, automobiles, re-
circulation air handling systems.
0
Air filters / materials. Aquarium filter material
0
Bed sheets, blankets and bed spreads
0
Buffer pads (abrasive & polishing)
0
Carpet and draperies. Fiber fill for upholstery, sleeping bags, apparels etc. where the
fiber is cotton, natural down, nylon, polyester, rayon or wool.
0
Fiber glass duct board.
Hunan Lijie Biochemical Co., Ltd. Product Technical Information
Website：www. -biology.com TEL:(+86)-731-88926880
Fax:(+86)-731-88926882
Padding process:
0
Dissolve SQ-40/SQ-60 in the appropriate solvent (such as water) at desired
concentration.
Padding procedure : one dip-one nip.
0
0
Dry and cure at 120oC for 5 mins.
0
Control S SQ-40/SQ-60 pick up at 4% to 10% o.w.f. (on weight of fabric).
0
Test the treated substrate by a modified AATCC-100 for antibacterial analysis before and
after washing procedure.
How to calculate SQ-40/SQ-60 pick-up:
0 wet weight pickup (WWPU) × % bath concentration(BC) = % o. w. f.× 100
0
The dry weight of a piece of textile was obtained.
0
The dry substrate dip in the finishing solution
0
The wet textile piece was run through a padding machine
0
The textile piece was weighted again to find the wet weight
0
Its weight percent in acquired moisture was calculated by the formula:
Spraying process:
0
Dissolve SQ-40/SQ-60 in the appropriate solvent (such as water) at desired
concentration
0
Spray the solution on the substrate
0
Dry and cure at 80oC for 30 mins (suitable for heat sensitive substrate)
0
Control SQ-40/SQ-60 pick up at 4% to 10% o.w.f.
0
Test the treated substrate by a modified AATCC-100 for antimicrobial analysis before and
after washing procedure
How to calculate SQ-40/SQ-60 pick-up:
0 wet weight pickup (WWPU) × % spray concentration (SC) = % o. w. f.× 100
0
The dry weight of substrate was obtained.
0
The dry substrate was sprayed with only water
0
The shoe was weighted again to find the wet weight
0
Its weight percent in acquired moisture was calculated by the formula:
*A solution of SQ-40/SQ-60 was made so that resulting treatment level would be 4%
to 10% of SQ-40/SQ-60 (as product).

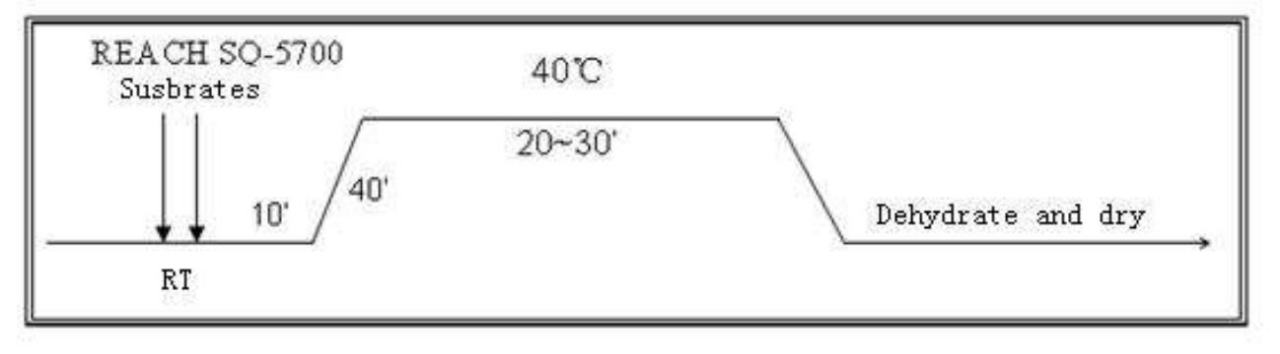

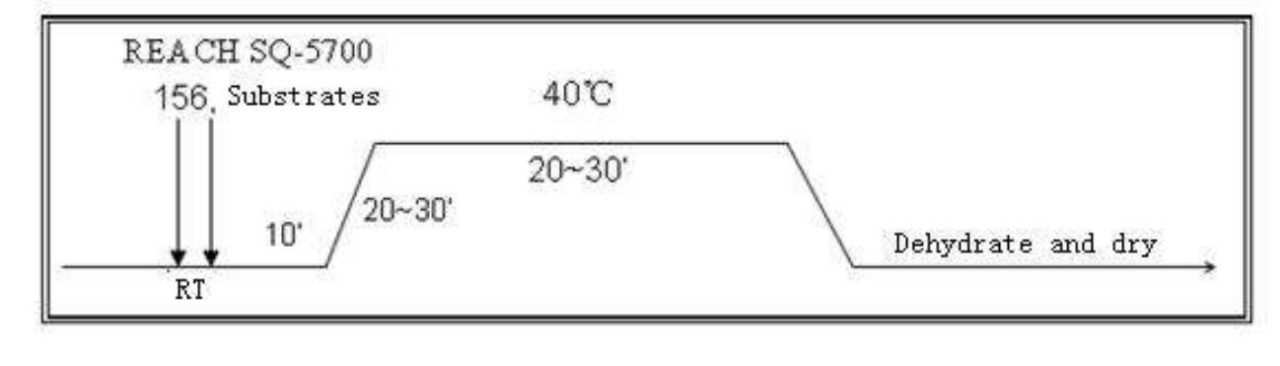

Exhaustion formulation & condition:
Nylon
SQ-40/SQ-60 3-5% o.w.f.
Biosil 156
0.6~0.75% o.w.f
1 : 10-20
Liquor ratio
No need to adjust pH
Acid dye to be fixed before SQ-40/SQ-60 treatment or crocking color fastness be affected.
Top finishes, softeners, antistat can be applied after SQ-40/SQ-60 treatment (they are
retarders).
Acrylic: Same as Nylon
Hank and cheese dyeing machines could be used for yarn
Cotton:
SQ-40/SQ-60
Liquor ratio
pH
3-5% o.w.f.
1 : 10-20
5.5 ~ 6.5
Storage:
This product may be stored upto six months in a sealed container. Containers should be stored in
a cool, dry area. Extended storage at elevated temperatures or exposure to direct heat or sunlight
could reduce product life. Keep containers sealed when not in use.
Packing: 25 & 200 kg HMHDPE containers（according to customer’s requirements）.
